Kia Rio horn not working – causes and how to fix it

The horn is an important safety feature in your Kia Rio. Driving your vehicle with a broken horn can be dangerous for you and others on the road. If the horn does not honk in your Rio when you press the button on the steering wheel, it can have various causes. What these are and what you can do about it, we explain in this article.

Some of the common causes that stops the horn from working normally on your Kia Rio are blown fuse, bad relay, faulty horn, corroded or worn out connector, broken wire, broken clock spring or bad horn button.

1. Blown fuse

The horn on Kia Rio needs electricity to work. In case of a faulty fuse, the circuit is interrupted and the horn can not work.

Check your Rio’s owners manual or the fuse box cover to find the exact location of the fuse for the horn. If the fuse is blown, replace it with a new one with the specified amp rating.

To check the fuse, pull it out of Rio’s fuse box using a fuse puller or needle nose plier and hold it against the light. If the metal strip is broken in the middle, the fuse has blown. You must replace it with one of the same amperage and therefore the same color. It does not matter in which direction you insert the fuse.

Video

First of all, you should find out where the horn relay is located in your particular model of Rio. The information may be listed in your vehicle’s owners manual. Typically relays are located in the engine compartment or under the steering wheel on the left-hand side. If you are lucky, the wiring diagram will be drawn on the facing. Before starting the replacement, you must always disconnect the vehicle’s battery.

As soon as you have identified the relay for the horn, you should check whether there is an identical relay in the box, typically you can use AC relay to test the horn relay. With this you can easily test whether the electromagnetic switch is actually the cause of the malfunctioning horn on your Rio. Most relays are plugged in, but they can still be relatively tight. Be careful not to damage anything when removing the relays. Remember: The battery should be reconnected after replacing the relay – otherwise no current will flow.

3. Bad horn

A broken horn could be the reason why you can no longer honk on your Kia Rio. Horns rarely break down, they can last decades and can even outlive the life of the vehicle. Still, it can fail depending on how often you use it. In particular, if the horn is working but sounds off, it’s because one of the horns has worn out.

You can test the horn on your Rio by checking the voltage at the connector or with a test light.

4. Broken wire or bad connector

The horn sits at the front of your Kia Rio where grime and other small particles can build up over time. This can lead to corrosion on the connector resulting in poor conductivity. You don’t necessarily have to replace the corroded connector, in most cases the connector can be cleaned with WD-40. For safety reasons, make sure the battery is disconnected when cleaning the connector, and the connector is fully dry before you plug it back in.

If you don’t see any corrosion on the connector of your Rio, then its time to perform the voltage test with a multimeter, or you can also use a test light. Turn on the multimeter and insert the probes into the connector, one at each point making sure the metal part of probes don’t touch each other – otherwise it will short out and blow up the fuse, and may cause damage to the vehicle’s electrical system. After inserting the probes, ask a friend to press the horn button in the vehicle. The multimeter should read 12+ volts, if it reads 0 volts then it indicates conductivity failure in the horn system: a broken wire, bad connector, broken clock spring or faulty switch can be the cause other than blown fuse or bad relay.

Rodent Damage: If bite marks or the like are discovered, there is a high probability that a rodent has let off steam in the engine compartment of your Rio. Then it is important to carefully examine all other cables and hoses for damage, including electrical wires for the horn.

5. Broken clockspring

The spiral cable or clockspring is a spiral-wound special rotary electrical connector in your Kia Rio which allows the steering wheel to turn while still making an electrical connection between the buttons on the steering wheel, including horn button, and the vehicle’s electrical systems. The clockspring is located between the steering wheel and the steering column. The clockspring contains delicate wires that can get damaged during servicing or due to overuse if the vehicle has put on too many miles.

If the clockspring is damaged in your Rio, you may see other system malfunctions as well. For example, the airbag warning light may illuminate in the instrument cluster, or other buttons on the steering wheel may stop working. But in rare cases, it is possible that only horn wire in the spiral gets damaged.

It is not feasible to repair a damaged clockspring. They are relatively inexpensive and once found defective should be replaced with a new one.

Источник

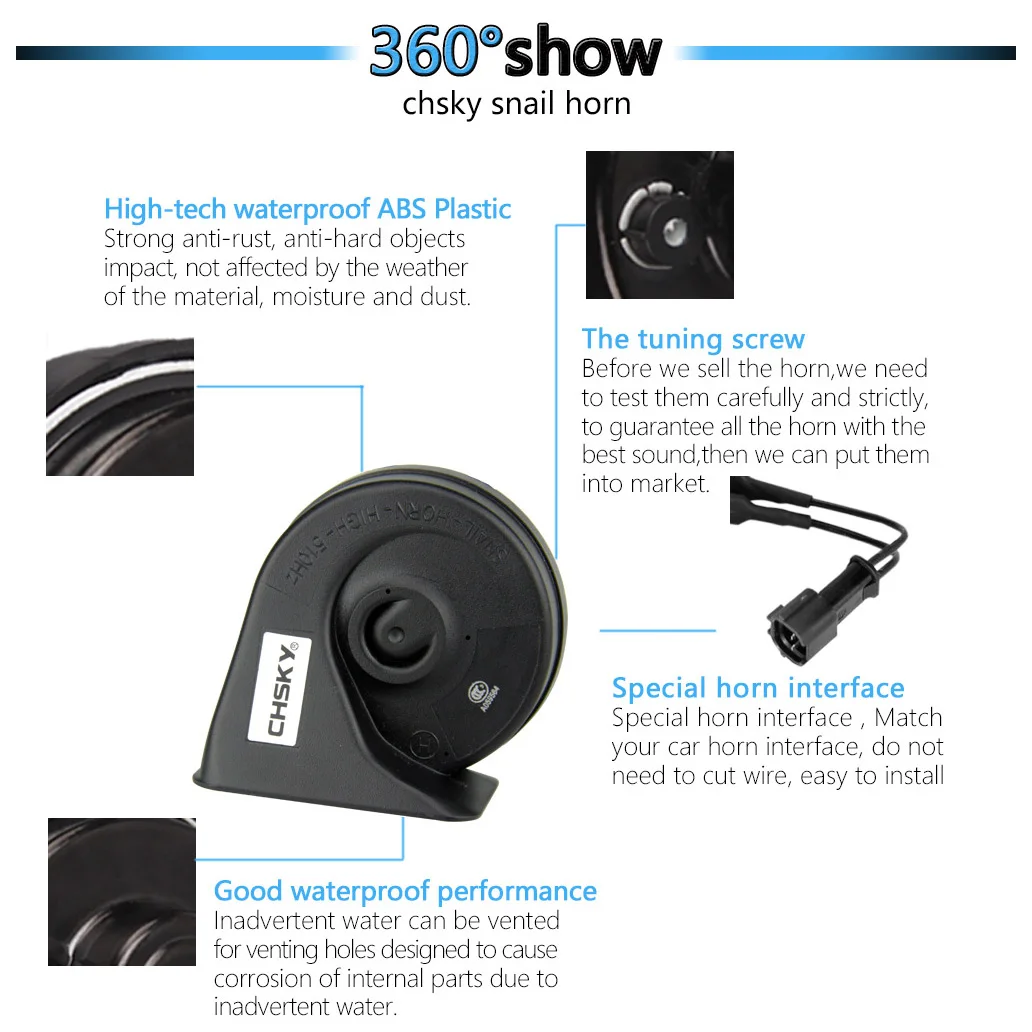

Chsky автомобильный клаксон Улитка Тип звуковой сигнал для Kia Rio 2013 12V громкость 110-129db Авто Рог длительный срок службы высокая низкая клаксон стайлинга автомобилей

•
•
•
•
•
•

Бренд CHSKY Тип товара Рожочки Multi-tone & Claxon Длина товара 12cm Диаметр Изделия 7.5cm Подтверждение внешней проверки Обязательный сертификат КНР Модельный год 2018 Название Модели CH-1202F-1T2-XD2 Вес товара 0.58kg Особые характеристики For Kia Rio Car Horn Тип материала ABS plastic,metal Высота Изделия 6.5cm Ширина Изделия 8.5cm For Vehicle Model For Kia Rio Car Horn Driving Hand RHD / LHD Fit for For Kia Model For Kia Rio Car Horn Car Horns Quantity 1 Piece High-Tone and 1 Piece Low-tone Car horn For Kia Rio years 1 2013 2014

Источник

Kia Rio: Body Electrical System / Horn

Remove the horn (A) after disconnecting the horn connector (B) and loosening the mounting the bolt.

Install the horn after connecting the horn connector.

Install the front bumper assembly.

The relay on the horn of this vehicle is built into the engine room relay block.

Headlamp Leveling Switch

Components and components location Components Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remov .

Ignition Switch

Repair procedures Inspection 1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column. .

Other information:

Kia Rio 2017-2020 YB Owners Manual: Notes on the safe use of the Tire Mobility Kit

Park your car at the side of the road so that you can work with the Tire Mobility Kit away from moving traffic. To be sure your vehicle will not move, even when you’re on fairly level ground, always set your parking brake. Only use the Tire Mobility Kit for sealing/inflation passenger c .

Kia Rio 2017-2020 YB Service Manual: Rheostat

Components and components location Components Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body — «Crash Pad Lower Panel») .

Источник

Звуковые сигналы CHSKY с Алиэкспресс. Замена звукового сигнала КИА РИО 4 и X-Line2

Думаю многие со мной согласятся, что на КИА РИО 4 и X-Line звуковой сигнал оставляет желать лучшего. Поэтому я решил заменить звуковой сигнал на своём KIA RIO X-Line. Приобрёл на Алиэкспресс звуковой сигнал CHSKY и остался очень доволен. В этом видео покажу вам как заменить звуковой сигнал на КИА РИО 4 и X Line. И, кстати, этот сигнал подойдёт на любой авто. Приятного просмотра! ✔️звуковой сигнал CHSKY заказывал ЗДЕСЬ 👉 http://alli.pub/6bkt6k ✔️цены на звуковые сигналы в РОССИИ 👉 https://ya.cc/BCGoB 🛠️Инструменты для разбора салона 👉 http://alli.pub/6b28ra 🔥Калькулятор ОСАГО онлайн (лучшие цены) 👉 https://clck.ru/UqkWu ✅ Поддержать канал/выпуск новых роликов 👉 https://clck.ru/NCeN7 ✔ Карта СберБанка: 4276 0600 2364 9737 ✔ Яндекс-деньги: 41001943710661 ✔ WebMoney: P510233836865 💥Мой канал на youtube 👉 https://www.youtube.com/channel/UCiw1Vz18EiGOfdlAv6-vWgA 💥Мой канал в яндекс Дзен 👉 https://zen.yandex.ru/id/5e8d86bef6575656885bd25c 💥Мой канал на Rutube 👉 https://rutube.ru/channel/23845344 💥Моя группа в Telegram 👉 https://t.me/ildarbayanov 💥Мой Telegram для связи 👉 https://t.me/dodj0687 💥Группа в вк с КУПОНАМИ и ПРОМОКОДАМИ Aliexpress 👉 https://vk.com/club170721484 💥Мой вк 👉 https://vk.com/id20389366 💥Cooperation/ Сотрудничество: Dodj8@ya.ru #chsky #звуковойсигнал #киарио #kiario #ildarBayanov

Источник

Клаксон автомобильный CHSKY, 2013-2014 дБ, 12 В, для Kia Rio

Спасибо большое продавцу!доставил до сочи_адлер в течении 10 дней,всё как в описании. Устанавливал на киа рио 4 без снятия бампера,сразу скажу надо будит помучится,на родное место чтоб установить не обошлось без доп.планки,снял ее со старого клаксона киа рио и соединил с новым,закручивал с обратной стороны крепления клаксона на родной болт и гайку и труд опровдался,так что тут уже на ваше усмотрение как устанавливать, подошло как родное и чётко смотрится,проводку не видно вся спрятана за номером и за телевизором идут по трубе в сторону дхо,захамутал стяжками и норм.держится!Сигналят достаточно громко!Советую всем сигналы и продовца.
